Custom Permanent Industrial Strong Ndfeb Neodymium Magnet Manufacturers

Short Description:

OEM & ODM China Top Magnet  Manufacturer

  • Size:Support customization of various sizes ndfeb magnet
  • Material: neodymium iron boron
  • Plating: Nickel、Zinc、Epoxy resin and so on
  • Tolerance:+/-0.05mm、+/-0.01mm、+/-0.1mm
  • Performance: N25-N55 (M-AH)
  • Magnetization direction: According to your request
  • MOQ: None, small quantity can be used as a sample
  • Sample: Support ordering,Free Sample Available
  • Other requirements: N-level marking, packaging requirements, and others (For more details, please refer to the product details page)

Product Detail

Product Tags

Professional Effective Fast

Custom Permanent Industrial Strong Ndfeb Neodymium Magnet Manufacturers

Over the last 15 years Hesheng magnet export 85% of its products to American, European, Asian and African countries. We are magnet producer with such wide range of neodymium and permanent magnetic material options, our professional technicians are available to help solve your magnetic needs and choose the most cost effective material for you.

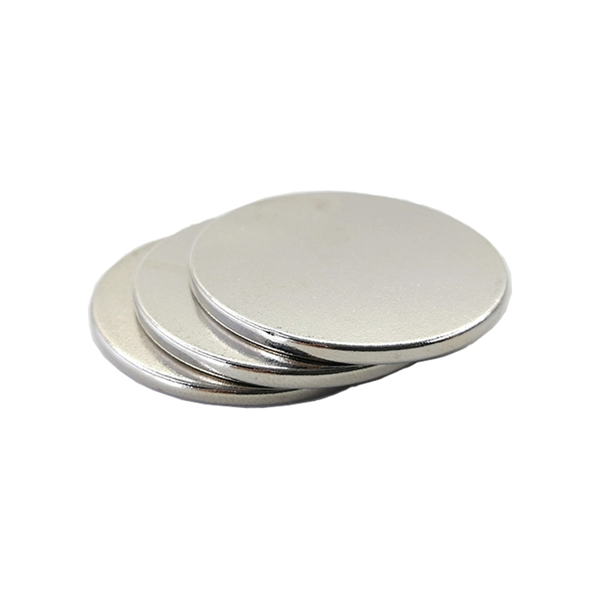

Disc Shape Achievable sizes range(mm) Size Machining Accuracy
Aiameter   Thickness Tolerance(mm)approximate
disc4  2<D<180   1<T<60 D<=10 ±0.03
      10<D<=60 ±0.05
      60<D<=100 ±0.1
      100<D<=180 ±0.15

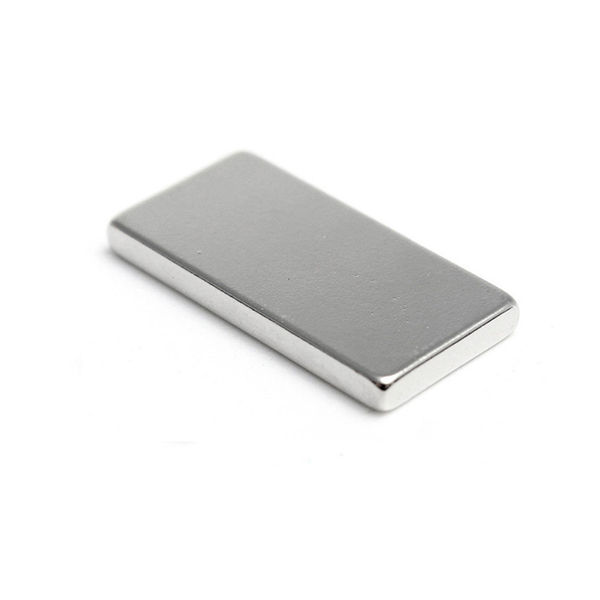

Rectangle Shape Achievable sizes range(mm) Size Machining Accuracy
Length Width Thickness Tolerance(mm)approximate
 2 1<L<180 1<W<100 1<T<60 L<=10 ±0.03
      10<L<=60 ±0.05
      60<L<=100 ±0.1
      100<L<=180 ±0.15

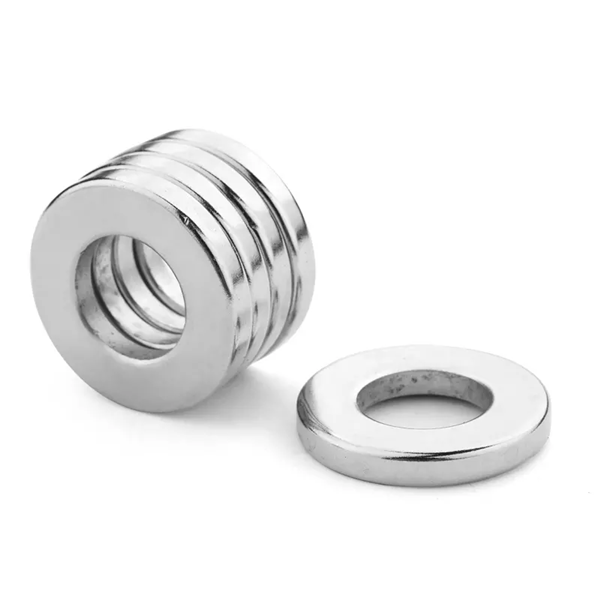

Ring Shape Achievable sizes range(mm) Size Machining Accuracy
OD ID Thickness Tolerance(mm)approximate
 ring 9 2<OD<180 1<ID<180 1<T<60 OD<=10 ±0.03
      10<OD<=60 ±0.05
      60<OD<=100 ±0.1
      100<OD<=180 ±0.15

Support ODM / OEM , Samples Service

We are a magnet manufacturing company, support all Shape magnets, as long as you tell us the size or drawing you need, we can produce it.

Neodymium( NdFeB )magnets are the type of rare earth magnet commercially available and are manufactured in a wide range of shapes,sizes and grades. Hesheng Magnetics Co., Ltd. was found in 2003 .which is the role-model enterprise among magnets manufacturing industries in China. We own one-step complete industrial chain from raw material blank, cutting, electroplating and standard packing.

Product Details

Product Name:
Neodymium Magnet, NdFeB Magnet
Grade & Working Temperature:
Grade
Working Temperature
N30-N55
+80℃ / 176℉
N30M-N52M
+100℃ / 212℉
N30H-N52H
+120℃ / 248℉
N30SH-N50SH
+150℃ / 302℉
N25UH-N50UH
+180℃ / 356℉
N28EH-N48EH
+200℃ / 392℉
N28AH-N45AH
+220℃ / 428℉
Coating:
Ni, Zn, Au, Ag, Epoxy, Passivated, etc..
Application:
Sensors, motors, filter automobiles, magnetic holders, loudspeakers, wind generators,  medical equipment, etc.
Advantage:
If in stock, free sample and deliver at same day; Out of stock, delivery time is same with mass production

The above are the dimensions purchased by our customers in the past week for your reference.

Disc Magnet

D2x0.2mm      D8x3mm           D15x4mm          D30x10mm
D2x2.5mm D8x4mm D15x5mm D30x15mm
D2.5x2.5mm D8x8mm D16x1.75mm D30x30mm
D3x2mm D10x1mm D18x2.5mm D35x4mm
D3x8mm D10x1.4mm D20x1mm D40x10mm
D3x20mm D10x1.5mm D20x3mm D40x20mm
D5x1mm D10x2mm D22x5mm D50x25mm
D5x2mm D10x3mm D22x10mm D50x30mm
D5x5mm D12x2mm D22x15mm D60x30mm
D6x3mm D13.5x10mm D22x20mm D95x45mm
D6x6mm D13.5x10.5mm D25x5mm D100x50mm
D7x6mm D14x1.75mm D30x2mm
D8x2mm D15*1.5mm D30x2.5mm



Block Magnet

F3x3x3mm F19x6x3mm F30x30x10mm F50x50x30mm
F5x5x5mm F19x5x2mm F30.5x12.6x2.5mm F50x15x15mm
F10x5x2mm F20x5x2mm F35x10x5mm F50x20x10mm
F10x10x2mm F20x10x2mm F36x36x17mm F67x5x6mm
F14x14x5mm F20x20x2mm F40x20x5mm F74x20x19mm
F15x4x5mm F20x20x4mm F40x20x10mm F100x50x20mm
F15x5x4mm F20x20x5mm F40x40x20mm F100x50x40mm
F15x9x5mm F21x4x2mm F41x5x6mm
F15.6x15.6x5.8mm F25x10x3mm F45x30x10mm
F18x9x5mm F25x10x5mm F46x23x12mm

Ring Magnet

D9xd3x4mm D18.6xd8.15x6mm D35xd23x3.5mm D65xd52x3mm
D10xd2.5x15mm D20xd8x3mm D36xd24x5mm D70xd32x10mm
D11.5xd5x2mm D26xd5x4mm D37xd17x8mm D75xd32x12mm
D12xd8x10mm D27.5x9.2x11.2mm D40xd4x10mm D76xd35x6mm
D14xd9x3mm D30xd12x2mm D50xd30x5mm D90xd50x20mm
D15xd11x5mm D30xd16x2mm D58xd47x3mm D150xd130x30mm



Arc Magnet

R10xr5x90°x3mm R18.9cr14x87°x60mm R61.5xr56.5x60°x76mm
R12xd8x90°x3mm R22.5xr19x72°x30mm R157xr143x11°x51mm
R16.5xr12x52.2°x13.5mm R57xr47x22.5°x30mm R161xr147x21°x51mm



This does not mean that we can only make magnets of the above sizes. Our company has been a magnet supplier for 20 years and has a complete industrial chain from raw materials to finished products. Our company supports customization of magnets of various shapes, sizes, coatings and magnetization directions.

The limit size that our company can achieve is:

Diameter: D150mm

Length: 220mm

Thickness: 100mm

Product Display

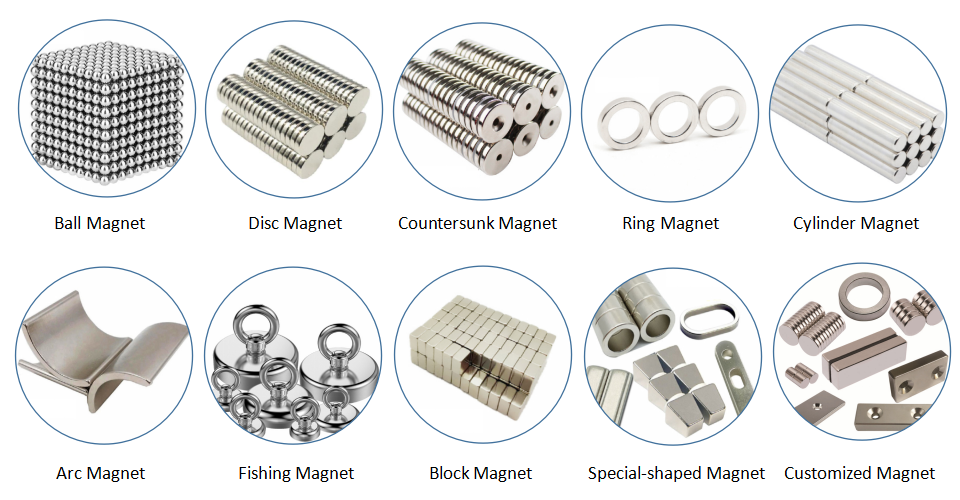

Neodymium magnets are the strongest permanent. Rare-Earth magnets commercially available today with magnetic properties that far exceed other permanent magnet materials. Industrial magnet manufacturers, wholesale magnets for sale. Advanced production equipment and 20 years of production experience can effectively help you customize various shapes! Special shaped magnet (triangle, bread, trapezoid, etc.) also can be customized!

>Neodymium Magnet

detail10

Can I customize products?

Yes, We customize magnets according to your requirements.

Please tell us the  size,  grade,  surface coation  and  quantity  of the magnet, you will get the most reasonable quotation quickly.

8x2 tolerance



Size Tolerance ( +/-0.05mm ) +/-0.01mm is possible

a. Before grinding and cutting, we inspect the magnet tolerance.
b. Before and after coating, we will inspect the tolerance by AQL standard.
c. Before delivery, will inspect the tolerance by AQL standard.

PS: Product size can be customized. AQL(Acceptable quality standards)

In production, we will keep standard tolerence +/-0.05mm. NOT send you smaller , for example if 20mm in size, we will NOT send you 18.5mm . To be frank, you can not see the difference by eyes.

What style and size do you like???  You can tell us what you need.  We can customize the magnet for you. (magnet supplier near me, magnet maker near me, magnet manufacturers near me)

>Magnetization Direction and Coating include

photobank (15)





Support all magnet plating , like Ni-Cu-Ni, Zn, Epoxy , Gold, Silver etc.

1>Neodymium magnets are made of Neodymium, Iron and Boron. If left to the elements, the iron in magnet will rust.
To protect the magnet from corrosion and to strengthen the brittle magnet material, it is usually preferable for the
magnet to be coated.
2>There are a variety of options for coatings, but nickel is the most common and usually preferred. Our nickel plated magnets are actually triple plated with layers of nickel, copper, and nickel again. This triple coating makes magnets much more durable than the more common single nickel plated magnets.
3>Other options of coating are zinc, tin, copper, epoxy,silver and gold.



We support customizing various magnetizing directions. lf you provide magnet drawings in thefirst time, it will be helpful for us to quote for youlf you are new product R & D or do not knowabout magnets, please see our product detailspage or contact us, we will give you good help!

Magnetization

Our Company

02
Hehseng
bangongshi

Hesheng Magnet Group established in 2003, Hesheng Magnetics is one of the earliest enterprises engaged in the production of neodymium rare earth permanent magnets in China. We have a complete industrial chain from raw materials to finished products. Through continuous investment in R&D capabilities and advanced production equipment, we have become the leader in the application and intelligent manufacturing of neodymium permanent magnets field after 20 years development,and  we have formed our unique and advantageous products in terms of super sizes, magnetic Assemblies,special shapes, and magnetic tools.

Our company has passed relevant international system certifications such as ISO9001, ISO14001, ISO45001 and IATF16949. Advanced production inspection equipment, stable raw material supply, and complete guarantee system have achieved our first-class cost-effective products. We have been maintaining extensive and in-depth cooperation with many well-known domestic and overseas enterprises, such as BYD, Gree, Huawei, General Motors, Ford, etc.

Processing and Production Equipment

Step : Raw Material→Cutting→Coating→Magnetizing→Inspection→Packaging

Our factory has strong technical force and advanced and efficient processing and production equipment to ensure that the bulk goods are consistent with the samples and to provide customers with guaranteed products.

fix details

Quality Inspection Equipment

Excellent quality testing equipment to ensure product quality

details3

Packing & Sale



lf it is a sample. it is packed in plastic bag + carton (according to the actual situation) lf it is a batch order, the default packaging is 8 boxes. that is, one carton contains 8 white boxes, protected by white foam. In order to facilitate international transportation, we will add magnetic separator on the four sides of the carton.

Please help us confirm these information before ordering:

1. ls 8-box package requirement?

2. Are shims required?

3. Is N-pole (S-pole) required to be marked?

details6
shipping

Global Supply

Door to door delivery

Trade term: DDP DDU. CIF FOB.EXW.etc.

Channel: Air, express, sea, train, truck, etc.

Payment: L/C, Westerm Union, D/P, DIA, T/T.

MoneyGram, Credit Card, etc.

Performance Table

details7

FAQ

1.Do you provide samples ? is it free or extra ?

Yes, we could offer the sample for free charge if we have stock, but do not pay the cost of freight.

2.Is it OK to print my logo on magnet product or package?

Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

3.How long does it take for production and shipping duration?

For regular magnet orders: 5-7 working days customized items, it would take 7-15 working days or so. Besides, the fastest production time is 3working days for the urgent orders.

4.How does the magnet grade and magnet dimensions (L x W x H) affects the Gauss Level of magnets?

Same magnet size, higher grade with higher gauss;

Same magnet grade, same surface area, the thicker, the higher gauss;

Same magnet grade, same thickness, larger surface area with lower gauss;

5.What does pulling force mean?

Pulling force is a measure of magnetic strength. It is the amount of force required to remove a magnet parallel to a solid magnetic surface, such as a steel plate.

6. how can we guarantee quality?

Always a pre-production sample before mass production;
Always final Inspection before shipment;

7.why should you buy from us not from other suppliers?

A,Main customers are Huawei,Sony
B,20 years factory of magnet
C,Factory direct price
D,20 RD team
E,ISO14001 、 ISO45001 and ISO9001.certificate
F,OEM service to helps customers grow together
